4733/4736 E 70° C is an appliance connector produced by Schneider Electric. The rated current is 10A, the rated voltage is 250VAC, 50Hz, and the rated voltage is 10A, 60Hz. The insulation strength is 2kVAC, and the allowable operating temperature is -25°C to 70°C. It is suitable for appliances with protection class I.

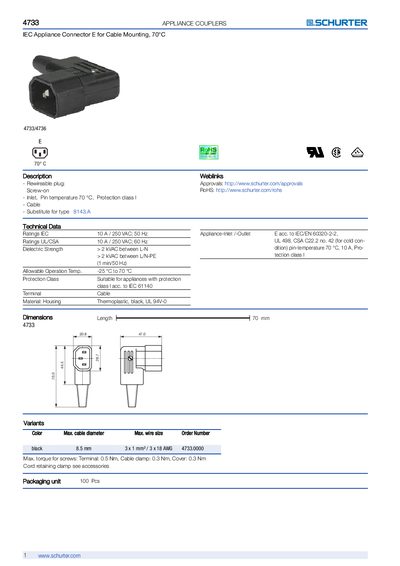

The 4733 Appliance Coupler E is an IEC‑60320 type connector designed for cable mounting in appliances. It features a re‑wireable plug, a pin temperature rating of 70 °C, and a protection class suitable for appliances according to IEC 61140.
Key specifications include IEC and UL/CSA ratings of 10 A / 250 VAC, dielectric strength greater than 2 kVAC, operating temperature range from –25 °C to 70 °C, and a housing made of black thermoplastic (UL 94V‑0). The connector’s length is 70 mm, supports a maximum cable diameter of 8.5 mm, and requires specific torque values for terminal screws.
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 10 A / 250 VAC, 60 Hz |
| Dielectric Strength | > 2 kVAC between L‑N |
| Pin Temperature | 70 °C |
| Operating Temperature Range | -25 °C to 70 °C |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Length | 70 mm |
| Maximum Wire Size | 3×1 mm?/3×18 AWG |
| Screw Torque (Terminal) | 0.5 Nm |
| Screw Torque (Cable Clamp) | 0.3 Nm |
| Screw Torque (Cover) | 0.3 Nm |
The IEC rating is 10 A / 250 VAC at 50 Hz for an Appliance‑Inlet/Outlet type E.
The coupler can operate from –25 °C up to 70 °C.
Apply 0.5 Nm to the terminal screw, and 0.3 Nm to the cable clamp and cover screws.
