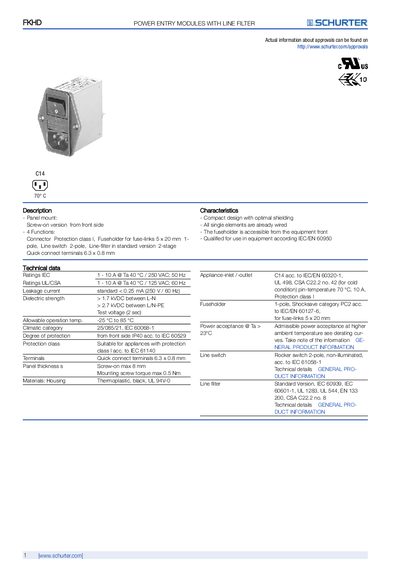

This document describes a power entry module with a line filter. The module is suitable for equipment with a rated current of 1-10A, a rated temperature of 40°C, and a rated voltage of 250VAC. It features a compact design, optimal shielding, and easy installation.
The FKHD series provides a compact, panel‑mount power entry solution with integrated line filter, fuseholder for 5 × 20 mm fuses, and a 2‑pole rocker line switch. All single elements are pre‑wired and the fuseholder is accessible from the equipment front, making installation straightforward.
Technical data include rated currents of 1‑10 A for both 250 VAC/50 Hz and 125 VAC/60 Hz, leakage current below 0.25 mA, dielectric strength up to 2.7 kVDC, and an operating temperature range of –25 °C to 85 °C. The module features quick‑connect terminals (6.3 × 0.8 mm), a P40 protection class, and is housed in UL‑94V‑0 thermoplastic. Various order numbers and material options (aluminum or nickel‑plated steel) are listed for different current ratings.
| Rated current (250 VAC, 50 Hz) | 1‑10 A |
|---|---|
| Rated current (125 VAC, 60 Hz) | 1‑10 A |
| Leakage current | < 0.25 mA (250 V/60 Hz) |
| Dielectric strength L‑N | > 1.7 kVDC |
| Dielectric strength L‑N/PE | > 2.7 kVDC |
| Operating temperature | -25 °C to 85 °C |
| Degree of protection | P40 (IEC 60529) |
| Terminal type | Quick‑connect 6.3 × 0.8 mm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
The module is rated for 1 to 10 A at Ta 40 °C for both 250 VAC/50 Hz and 125 VAC/60 Hz operation.
It can operate from –25 °C up to 85 °C.
The module uses quick‑connect terminals sized 6.3 × 0.8 mm.
It has a P40 protection class according to IEC 60529.
