SCHURTER FPPP-0011 1 BLOCK FILTERS is a standard and medical line filter from SCHURTER. It is PCB mounted and has a 1-stage standard attenuation. It can be used for PCB mounting or quick connect terminals.

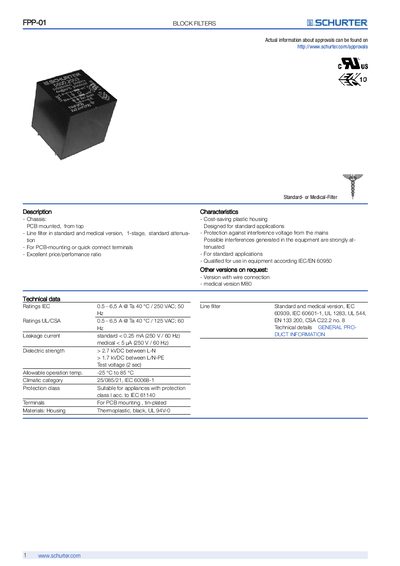

The FPP-01 block filter series from SCHURTER is offered in standard and medical versions. Both versions feature a cost‑saving plastic housing, PCB‑mounting options, and compliance with IEC/EN 60950, IEC 60939, IEC 60601‑1, UL 1283 and UL 544 standards.
Technical data include rated currents from 0.5 A to 6.5 A, leakage‑current limits, dielectric strength, operating temperature range, and various case sizes (13P, 18P, 24P). Detailed variant tables list filter types, inductance, capacitance, and ordering numbers for each current rating.
| Leakage current (standard) | < 0.25 mA (250 V/60 Hz) |
|---|---|
| Leakage current (medical) | < 5 pA (250 V/60 Hz) |
| Dielectric strength (L‑N) | > 2.7 kVDC |
| Dielectric strength (L/N‑PE) | > 1.7 kVDC |
| Operating temperature range | -25 °C to 86 °C |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Case size options | 13P / 18P / 24P |
The standard version limits leakage current to less than 0.25 mA at 250 V/60 Hz.
It can operate from –25 °C up to 86 °C.
The filter is offered in 13P, 18P, and 24P case sizes.
