This product is the FPPGG11 model of the fuse holder from Schurter. It supports 5x20mm fuses and can be fixed to the front panel with a fixing nut. The rated voltage is 250VAC, the rated current is 10A (VDE), 16A (UL/CSA), and the rated power is 2.5W/10A. It supports IP40/IP67 levels of protection and is suitable for devices with protection class I or II.

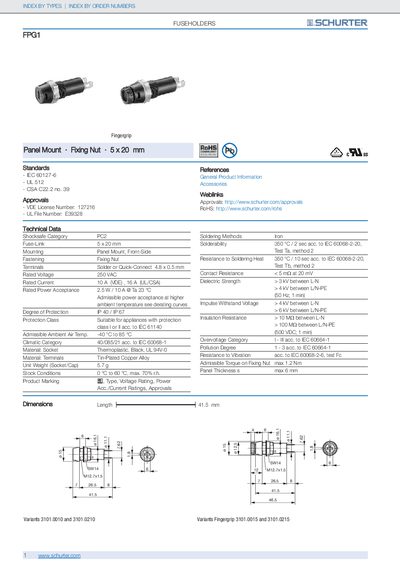

This handbook provides an index of SCHURTER FPG1 fuseholder types and their corresponding order numbers. It includes variant listings for slotted and finger‑grip designs, with details on solder or quick‑connect terminations and IP protection ratings.
Technical data such as rated voltage, current, power acceptance, material composition, and environmental ratings are presented, along with standards and approvals (IEC, UL, CSA, VDE). The document also shows packaging options and reference links to SCHURTER’s approval and RoHS pages.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 0 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance | 2.5 W/10 A @ 23 °C |
| Degree of Protection | IP40 / IP67 |
| Admissible Ambient Air Temperature | -40 °C to 85 °C |
| Socket Material | Thermoplastic, Black, UL 94V‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Contact Resistance | <5 mΩ at 20 mV |
| Impulse Withstand Voltage | > 3 kV between L‑N |
It complies with IEC 60127‑6, UL 512, CSA 022.2 no. 39, has VDE License Number 127216 and UL File Number 39328.
Depending on the variant, the fuseholder is rated IP40 or IP67.
