SB520S - SB5B0S SCHOTTKY BARRIER RECTIFIER DIODES is a Schottky diode product produced by ON Semiconductor.

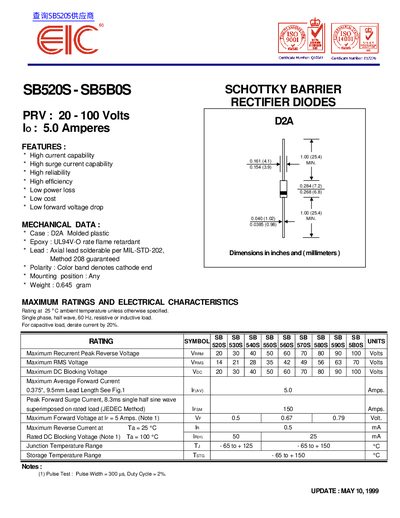

The SB520S is a Schottky barrier rectifier diode offered by EIC. It features high current capability, low forward voltage drop, and a molded plastic case with UL94V‑0 flame retardant epoxy. The device is designed for low power loss and can be mounted in any position.
Key specifications include a maximum reverse voltage of 20 V, RMS voltage rating of 14 V, average forward current of 5 A, and a peak forward surge current of 150 A. Detailed forward and reverse characteristic curves are provided, along with mechanical dimensions and lead specifications.
| Maximum Recurrent Peak Reverse Voltage | 20 V |
|---|---|
| Maximum RMS Voltage | 14 V |
| Maximum DC Blocking Voltage | 20 V |
The SB520S can withstand a maximum reverse voltage of 20 V.
