STBS06H - STBS5D0 is a bidirectional transient voltage suppressor from ST company, with 500W surge capability, excellent clamping capability, low zener impedance, fast response time, typical IR less than 1µA above 10V

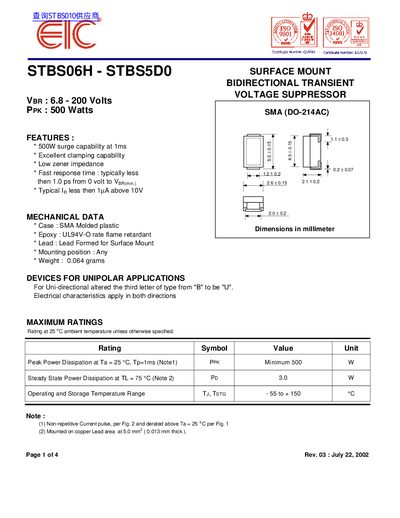

The document details the specifications for a series of Surface Mount Bidirectional Transient Voltage Suppressors (TVS) manufactured by EIC. The devices are designed to protect circuits from electrostatic discharge and other electrical transients, featuring a peak power dissipation of 500 Watts in an SMA package.
Key features highlighted include excellent clamping capability, low zener impedance, and a fast response time of less than 1.0 nanosecond. The datasheet lists specific part numbers ranging from STBS06H to STBS5D0 with breakdown voltages between 6.4V and 23.1V.
| Package Type | SMA (DO-214AC) |
|---|---|
| Operating Temperature Range | - 55 to + 150 °C |
Yes, but users must alter the third letter of the type designation from 'B' to 'U' for unidirectional use.
The peak power dissipation is a minimum of 500 W when the ambient temperature is 25 °C and the pulse width is 1ms.
The device operates and stores in temperatures ranging from -55 to +150 °C.
The weight of the device is 0.064 grams.
