CN18A - CN18M is a diode produced by Nexperia, with features including high current capability, high surge current capability, high reliability, low reverse current, low forward voltage drop and chip form.

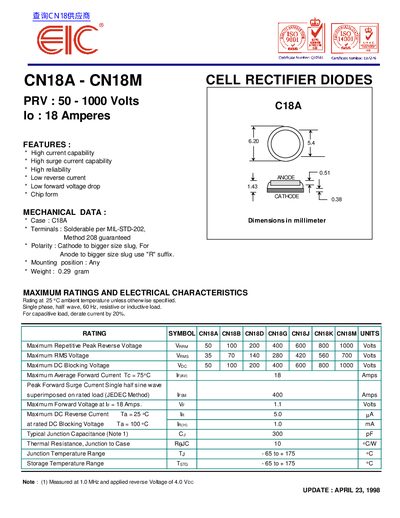

This document provides technical specifications for the EIC CN18A through CN18M series of cell rectifier diodes. Key features include high current capability, high surge current capability, and low reverse current. The diodes are available in various voltage ratings ranging from 50V to 1000V.
| Maximum Forward Voltage | 1.1 Volts |
|---|---|
| Maximum DC Reverse Current | 5.0 pA |
| Typical Junction Capacitance | 300 pF |
| Thermal Resistance, Junction to Case | 10 °C/W |
| Junction Temperature Range | -65 to + 175 °C |
The maximum forward voltage at 18 Amps is 1.1 Volts.
You must derate the current by 20% when using a capacitive load.
The maximum forward voltage is 11 Volts when the forward current is 18 Amps.
