This document describes the features and characteristics of the SB320S - SB3B0S series Schottky barrier rectifier diodes, including high current capability, high surge current capability, high reliability, high efficiency, low power loss, and low forward voltage drop.

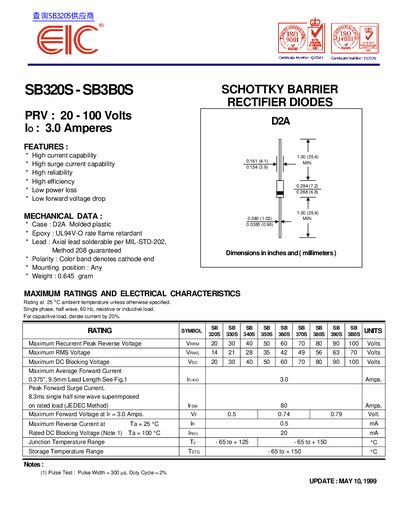

This document provides technical specifications for the EIC SB320S to SB3B0S series of Schottky Barrier Rectifier Diodes. Key features include high current capability up to 3.0 Amperes average forward current and a maximum peak forward surge current of 80 Amps.
| Average Forward Current (IF(av)) | 3.0 Amps. |
|---|---|
| Maximum Recurrent Peak Reverse Voltage (Vrrm) | 20 to 100 Volts |
| Maximum Forward Voltage (VF) | 0.5 to 0.79 Volt |
| Junction Temperature Range (Tj) | -65 to +125 °C |
| Case Type | D2A Molded plastic |
The specifications are based on a 0.375 inch (9.5mm) lead length.
For capacitive loads, the current rating must be derated by 20%.
