SZ103D - SZ10D0 is a surface mount silicon zener diode with a complete voltage range of 3.3 to 200 volts. It has high peak reverse power dissipation, high reliability, low leakage current, and other features.

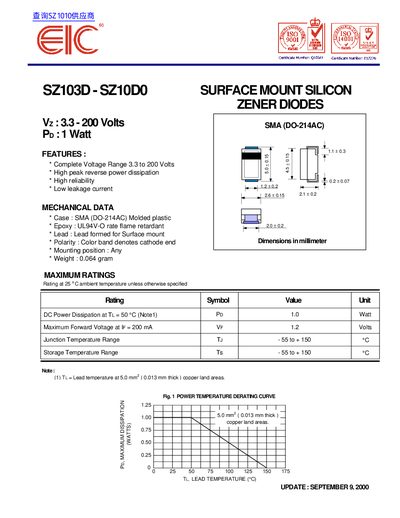

This document provides technical specifications for EIC Surface Mount Silicon Zener Diodes, covering the complete voltage range from 3.3 to 200 Volts. The devices feature a high peak reverse power dissipation and are housed in an SMA (DO-214AC) molded plastic case with UL94V-0 flame retardant epoxy.
| Voltage Range | 3.3 to 200 Volts |
|---|---|
| Package Type | SMA (DO-214AC) |
| Power Dissipation | 1 Watt |
| Maximum Forward Voltage | 1.2 Volts |
| Junction Temperature Range | - 55 to + 150 °C |
| Storage Temperature Range | - 55 to + 150 °C |
| Weight | 0.064 gram |
The standard tolerance is + 10%, though a + 5.0% tolerance is available by altering the fourth number of the type.
The cathode end is denoted by a color band.
The "SZ" prefix will be omitted in the marking on the diode.
