3EZ series silicon diodes, with an operating voltage range of 3.9 to 400 volts, high peak reverse power dissipation, high reliability, and low leakage current

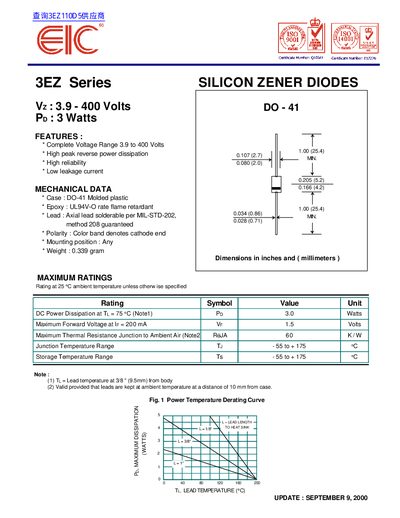

This document provides technical specifications for the EIC 3EZ Series Silicon Zener Diodes. The series offers a complete voltage range from 3.9 to 400 Volts with a power dissipation of 3 Watts. Key features include high peak reverse power dissipation, high reliability, and low leakage current. The diodes are housed in a DO-41 molded plastic case with UL94V-0 rated epoxy.
| Voltage Range | 3.9 - 400 Volts |
|---|---|
| Power Dissipation | 3 Watts |
| Case Type | DO-41 Molded plastic |
| Epoxy Rating | UL94V-0 |
| Maximum Forward Voltage | 1.5 Volts |
| Junction Temperature Range | -55 to +175 °C |
The suffix '5' indicates a +5.0% tolerance on the Zener voltage.
The suffix '10' indicates a +10.0% tolerance on the Zener voltage.
The polarity is indicated by a color band that denotes the cathode end.
