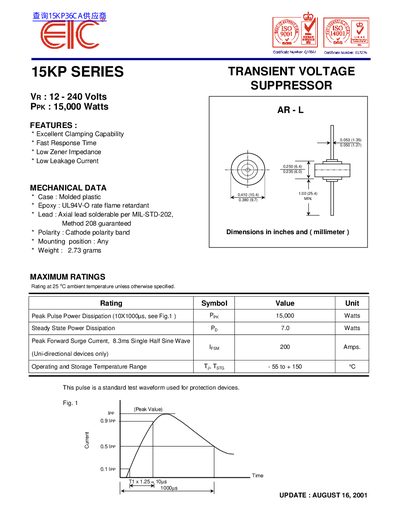

The product is a 15KP series transient voltage suppressor. Its features are excellent clamping capability, fast response time, low diode impedance and low leakage current
The 15KP series from EIC provides transient voltage suppression for voltages from 12 V to 240 V. It offers excellent clamping capability, fast response time, low Zener impedance and low leakage current.
The device is housed in a molded‑plastic case, weighs 2.73 g, and is rated for a peak pulse power dissipation of 15 kW and a steady‑state dissipation of 7 W. It operates from –55 °C to +150 °C and includes axial leads suitable for MIL‑STD‑202 mounting.
| Voltage rating (Vr) | 12‑240 V |
|---|---|
| Steady State Power Dissipation | 7.0 W |
| Weight | 2.73 g |
| Case material | Molded plastic |
| Lead type | Axial lead, solderable per MIL‑STD‑202 |
The suffix "A" denotes a 5 % tolerance device, while no suffix denotes a 10 % tolerance device.
The series offers excellent clamping capability, fast response time, low Zener impedance and low leakage current.
