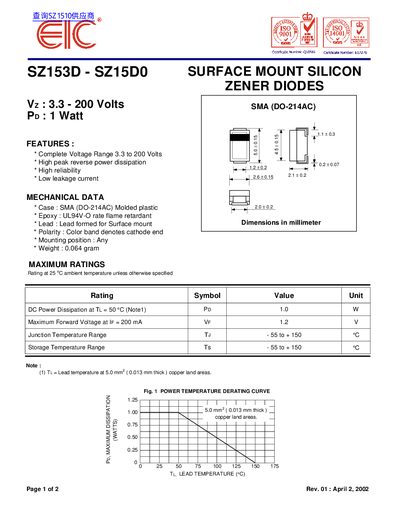

This is a SZ153D - SZ15D0 surface mount silicon zener diode, which has a voltage range of 3.3 to 200 volts, a power dissipation of 1 watt, high peak reverse power dissipation, high reliability and low leakage current.
This document provides technical specifications for the EIC SZ series of surface mount silicon zener diodes. It details features such as a complete voltage range from 3.3 to 200 Volts and high peak reverse power dissipation.
The datasheet includes mechanical data, maximum ratings including DC power dissipation at 1.0 W, and comprehensive electrical characteristics tables for various nominal zener voltages ranging from 3.3V to 200V.
| Maximum Forward Voltage (IF = 200 mA) | 1.2 V |
|---|---|
| Junction Temperature Range | -55 to +150 °C |
| Storage Temperature Range | -55 to +150 °C |
| Case Style | SMA (DO-214AC) |
The complete voltage range is from 3.3 to 200 Volts.
The maximum DC power dissipation at a lead temperature of 50 °C is 1.0 Watt.
The type numbers listed have a standard tolerance of +5%.
