ULCE series is an ultra-low capacitance transient voltage suppressor with 1500W peak pulse surge reverse capability, excellent clamping capability, low incremental surge resistance and fast response time (typically less than 5.0ns).

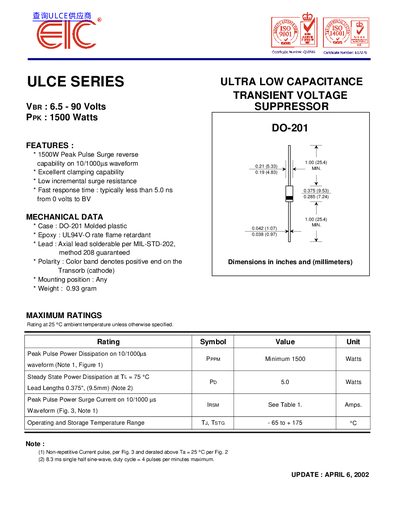

This document provides technical specifications for the EIC ULCE Series Ultra Low Capacitance Transient Voltage Suppressors. Key features include a 1500W peak pulse surge capability on a 10/1000us waveform, excellent clamping performance, and a fast response time of typically less than 5.0 ns.
| Steady State Power Dissipation | 5.0 Watts |
|---|---|
| Operating Temperature Range | -65 to +175 °C |
| Case Package | DO-201 |
| Response Time | less than 5.0 ns |
The device has a peak pulse power dissipation of 1500 Watts on a 10/1000us waveform.
The maximum steady state power dissipation is 5.0 Watts at a lead temperature of 75 °C.
The operating and storage temperature range is from -65 to +175 °C.
