AR2500L - AR2510L are automotive rectifier diodes with features including high current capability, high surge current capability, high reliability, low reverse current, and low forward voltage drop.

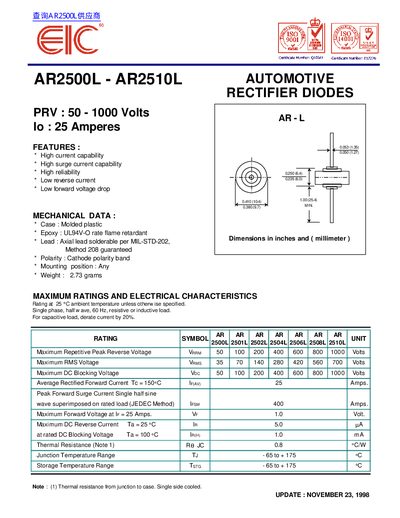

This document provides technical specifications for the EIC AR2500L and AR2510L series of Automotive Rectifier Diodes. It lists key features such as high current capability, low reverse current, and a UL94V-0 flame retardant epoxy case.
The datasheet details maximum ratings including repetitive peak reverse voltage up to 1000 Volts and average rectified forward current of 25 Amps. It also includes typical electrical characteristic curves for forward and reverse behavior under specific temperature conditions.
| Average Rectified Forward Current (Tc = 150°C) | 25 Amps |
|---|---|
| Peak Forward Surge Current (Irsm) | 400 Amps |
| Maximum Forward Voltage at Ir = 25 Amps | 1.0 Volt |
| Junction Temperature Range (TJ) | -65 to +175 °C |
The maximum average rectified forward current at a case temperature of 150°C is 25 Amps.
The maximum peak forward surge current is 400 Amps when superimposed on the rated load.
The maximum forward voltage drop is 1.0 Volt when the current is 25 Amps.
