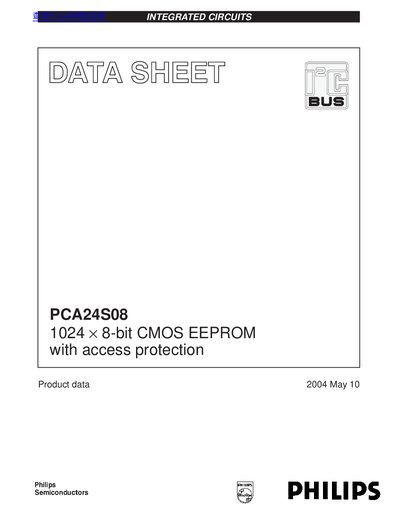

PCA24S08 is a 1024 × 8-bit CMOS EEPROM with access protection
The PCA24S08 provides 8192 bits of serial EEPROM organized as 1024 words of 8 bits each. It is compatible with standard 24C08 devices and adds block‑level access protection that can be configured via the I²C bus. The memory is divided into eight 128‑byte blocks, with additional pages for protection and ID information.
Typical specifications include a 2.5 V‑3.6 V operating range, up to 400 kHz I²C clock, 100 k write‑cycle endurance, 10‑year data retention, and less‑than‑5 ms write time. The device is offered in SO8 and TSSOP8 packages and operates from –40 °C to +85 °C.
| Memory size | 1024 × 8 bit (8 kbit) |
|---|---|
| Organization | 8 blocks of 128 bytes each |
| Endurance | 100,000 write cycles per byte |
| Data retention | 10 years |
| Write time | < 5 ms |
| Operating voltage | 2.5 V – 3.6 V |
| I²C clock frequency | up to 400 kHz |
| Package types | SO8, TSSOP8 |
| Temperature range | -40 °C – +85 °C |
| ESD protection | ≥ 2000 V HBM |
Writes to the EEPROM take less than 5 ms to complete.
The device is rated for 100,000 write cycles per byte.
It operates from 2.5 V to 3.6 V.
Access permissions are set via the I²C bus and stored on a separate protection page.
