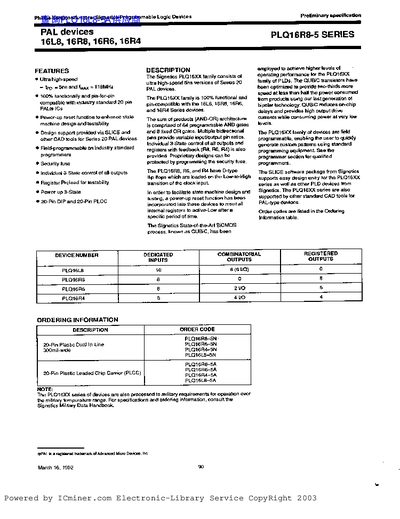

The PLQ16R8-5 series from Philips (Signetics) is an ultra‑high‑speed PAL device offering 8 dedicated inputs, 6 bidirectional I/O lines, and up to 8 output registers. It includes a power‑up reset function and 3‑State output control, making it suitable for state‑machine design and testing.
The devices are supplied in 20‑Pin DIP and 20‑Pin PLCC packages and are supported by a range of design tools, including Signetics SLICE, SNAP, ABEL, CUPL, and PALASM. Ordering information and detailed logic diagrams are provided in the specification.
| Package types | 20‑Pin DIP and 20‑Pin PLCC |
|---|---|
| Dedicated inputs | 8 |
| Output registers | 8 |
The devices are offered in 20‑Pin DIP and 20‑Pin PLCC packages.
It provides eight output registers.
