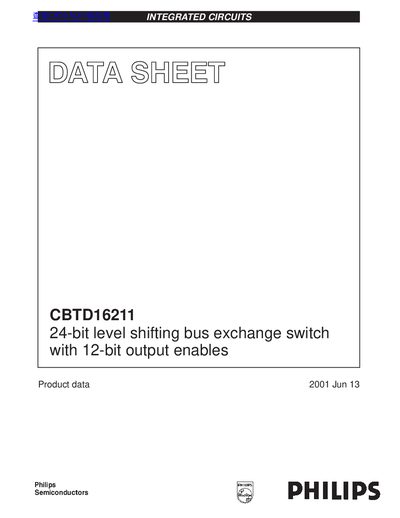

CBTD16211 is a 24-bit level shifting bus exchange switch with 12-bit output enables produced by Philips Semiconductors.
The CBTD16211 is a 24‑bit level‑shifting bus exchange switch with a 12‑bit output‑enable function, designed for high‑speed TTL‑compatible bus switching. It offers 50 switch connections between two ports and includes integrated diode protection for level shifting between 5 V inputs and 3.3 V outputs.
Key specifications include operation from –40 °C to +85 °C, supply voltage range of –0.5 V to +7.0 V, typical propagation delay of 0.25 ns, and package options of SSOP56 and TSSOP56. The datasheet also details absolute maximum ratings, recommended operating conditions, and typical AC characteristics.
| Switch connections | 50 |
|---|---|
| Package options | SSOP56, TSSOP56 |
| Operating temperature range | -40 °C to +85 °C |
| Supply voltage range | -0.5 V to +7.0 V |
| Maximum input diode current | -50 mA |
The device can operate with a supply voltage from –0.5 V to +7.0 V.
It is specified for operation from –40 °C to +85 °C.
The part is offered in SSOP56 (shrink small outline) and TSSOP56 (thin shrink small outline) packages.
It provides 50 switch connections between two ports.
