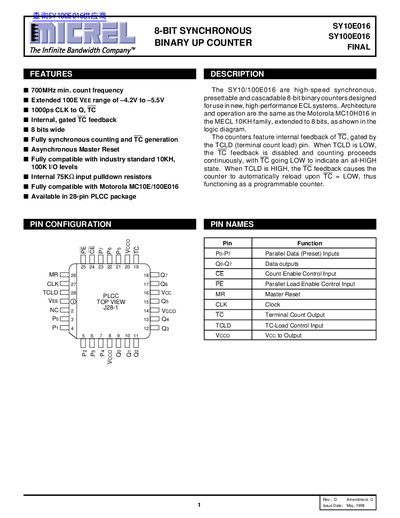

The SY10/100E016 are high-speed synchronous, presettable and cascadable 8-bit binary counters designed for use in new, high-performance ECL systems.
The SY10E016 and SY100E016 are high‑speed, synchronous, presettable 8‑bit binary counters offered in a 28‑pin PLCC package. They feature internal terminal‑count feedback, programmable divider operation, and are compatible with standard ECL voltage levels.
The document provides pin functions, block diagrams, electrical characteristics, truth tables, application notes for cascading multiple devices, and ordering codes for commercial and industrial variants.
| Maximum Count Frequency | 700‑900 MHz |
|---|---|
| Typical Power Supply Current (10E) | 151 mA |
| Input HIGH Current | 150 µA |
| Package | 28‑pin PLCC (J28‑1) |
The counters can operate up to 700 MHz to 900 MHz depending on conditions.
Typical supply current is about 151 mA.
The device is supplied in a 28‑pin PLCC package.
Yes, the TCLD pin allows the device to function as an 8‑bit programmable divider.
