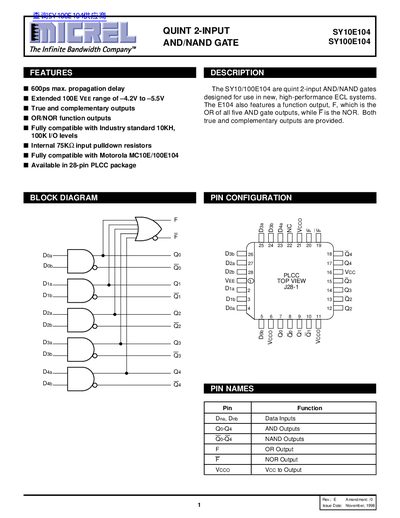

The SY10/100E104 are quint 2-input AND/NAND gates designed for use in new, high-performance ECL systems. The E104 also features a function output, F, which is the OR of all five AND gate outputs, while F is the NOR. Both true and complementary outputs are provided.
The SY10E104 and SY100E104 are quint 2‑input AND/NAND gates designed for high‑performance ECL systems. They provide five AND outputs, five NAND outputs, and function outputs (OR and NOR) derived from the AND outputs.
Key features include a maximum propagation delay of 600 ps, true and complementary outputs, an extended VEE range of –4.2 V to –5.5 V, internal 75 kΩ input pulldown resistors, and availability in a 28‑lead PLCC (J28‑1) package. Electrical specifications cover input high current up to 200 µA and power‑supply current up to 46 mA.
| Propagation delay (tPLH) | 600 ps max |
|---|---|
| VEE voltage range | –4.2 V to –5.5 V |
| Output types | True and complementary outputs, OR/NOR function outputs |
| Input pull‑down resistance | 75 kΩ |
| Package | 28‑pin PLCC (J28‑1) |
The SY10E104 has a maximum propagation delay of 600 ps.
They support a VEE range from –4.2 V to –5.5 V.
Both devices are offered in a 28‑pin PLCC (J28‑1) package.
They provide true and complementary outputs, plus OR and NOR function outputs.
