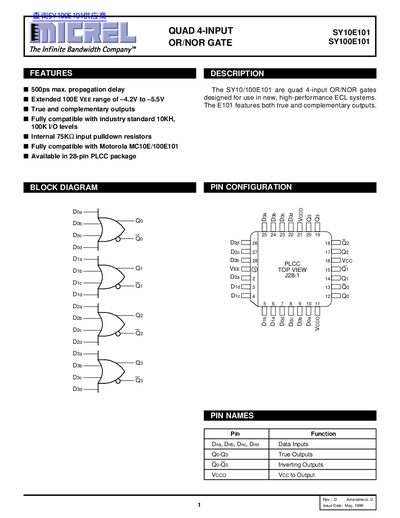

The SY10E101 and SY100E101 are quad 4-input OR/NOR gates designed for use in new, high-performance ECL systems. The E101 features both true and complementary outputs.
The SY10E101 and SY100E101 are quad 4‑input OR/NOR gates designed for high‑performance ECL systems. They feature true and complementary outputs and are fully compatible with industry‑standard 10 kΩ and 100 kΩ I/O levels.
The devices are supplied in a 28‑lead PLCC (J28‑1) package and include detailed electrical specifications such as propagation delay, rise/fall times, input current, and power supply requirements.
| Package type | 28‑lead PLCC (J28‑1) |
|---|
Both devices are supplied in a 28‑lead PLCC (J28‑1) package.
