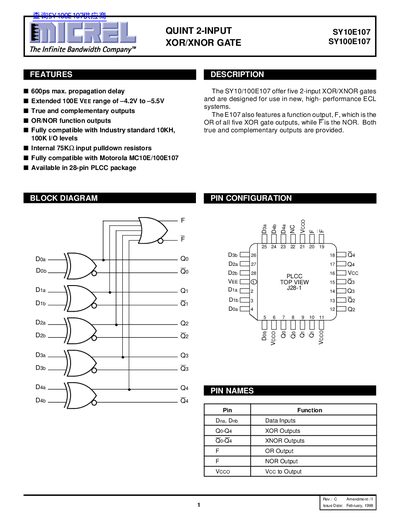

The SY10E107 and SY100E107 are quint 2-input XOR/XNOR gates with OR/NOR function outputs. Both true and complementary outputs are provided.
The SY10E107 and SY100E107 are 2‑input XOR/XNOR gates offered in a 28‑lead PLCC (J28‑1) package. Each device provides five XOR/XNOR gates plus a function output (F) that is the OR or NOR of all five gates, with both true and complementary outputs.
The datasheet lists electrical specifications such as a maximum propagation delay of 600 ps, input HIGH current of 200 µA, power‑supply current around 10 mA, and rise/fall times between 275 ps and 700 ps. Ordering codes are provided for commercial versions of both parts.
| Maximum propagation delay (tPLH) | 600 ps |
|---|---|
| Power supply current | 10 mA (typ) |
| Package | 28‑lead PLCC (J28‑1) |
| Ordering code (SY10E107) | SY10E107JC, SY10E107JCTR |
The maximum propagation delay (tPLH) to the output is 600 ps.
SY10E107 is available as SY10E107JC and SY10E107JCTR; SY100E107 is available as SY100E107JC and SY100E107JCTR.
They are offered in a 28‑lead PLCC (J28‑1) package.
