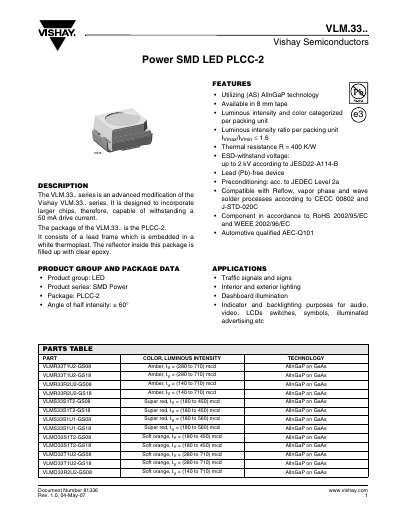

This document introduces the features and characteristics of Vishay Semiconductors VLM.33.. series. The series products use (AS) AlInGaP technology and can be used on 8mm tapes. The package units are categorized by luminous intensity and color. The luminous intensity ratio of each package unit is less than 1.6. The thermal resistance is R = 400 K/W. The ESD-withstand voltage is up to 2 kV, and meets the JEDEC Level 2a preconditioning requirements. It is compatible with Reflow, vapor phase and wave solder processes, meets CECC 00802 and J-STD-020C requirements, meets RoHS 2002/95/EC and WEEE 2002/96/EC requirements, and meets AEC-Q101 19225 e3 standard.
The VLM.33.. series is an advanced SMD Power LED offered in PLCC‑2 packages. It uses AlInGaP technology and is available in several colors and brightness groups for traffic signals, interior/exterior lighting, dashboard illumination, and indicator/backlighting applications.
The document lists absolute maximum ratings, typical optical and electrical characteristics, package dimensions, tape‑and‑reel handling, soldering profiles, and recommended storage conditions for moisture‑sensitive devices.
| Maximum forward current | 50 mA |
|---|---|
| Forward voltage (typical, 30 mA) | 1.7 V |
| Thermal resistance (junction‑ambient) | 400 K/W |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Junction temperature (max) | 125 °C |
| Power dissipation (max) | 130 mW |
| Package type | PLCC‑2 |
| Lead‑free | Yes |
The LEDs can be driven up to 50 mA.
Store the devices at 10 °C to 30 °C with humidity ≤ 60 % RH; keep them in dry boxes after opening.
The thermal resistance is 400 K/W.
Typical applications include traffic signals, interior and exterior lighting, dashboard illumination, and indicator/backlighting.
