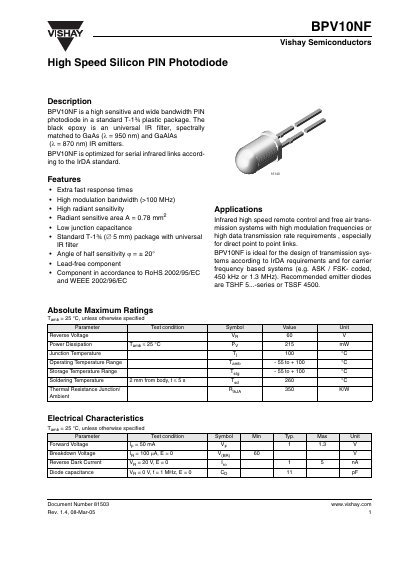

BPV10NF is a high sensitive and wide bandwidth PIN photodiode in a standard T-1¾ plastic package. The black epoxy is a universal IR filter, spectrally matched to GaAs (λ = 950 nm) and GaAlAs (λ = 870 nm) IR emitters. BPV10NF is optimized for serial infrared links according to the IrDA standard. Features include extra fast response times, high modulation bandwidth (>100 MHz), high radiant sensitivity, radiant sensitive area A = 0.78 mm2, low junction capacitance, standard T-1¾ (∅ 5 mm) package with universal IR filter, angle of half sensitivity ϕ = ± 20°.
The BPV10NF is a high‑sensitivity, wide‑bandwidth PIN photodiode offered in a standard T‑1¾ plastic package with a universal IR filter. It is optimized for serial infrared links complying with the IrDA standard and is suitable for high‑speed remote‑control and free‑air transmission systems.
The document provides electrical and optical characteristics, package dimensions, and regulatory information such as RoHS compliance and ozone‑depleting substance policy. It also includes legal disclaimer notes regarding usage and liability.
| Reverse Voltage (VR) | 60 V |
|---|---|
| Forward Voltage (VF) at IF=50 mA | 11.3 V |
| Junction Capacitance | 11 pF |
| Peak Sensitivity Wavelength (λp) | 940 nm |
| Radiant Sensitive Area (A) | 0.78 mm² |
| Angle of Half Sensitivity (ϕ) | ±20° |
| Quantum Efficiency (η) | 70 % |
| Noise Equivalent Power (NEP) | 3 × 10⁻¹⁴ W/√Hz |
| Detectivity (D*) | 3 × 10¹² cm·√Hz/W |
| Modulation Bandwidth | >100 MHz |
The BPV10NF can withstand a reverse voltage of up to 60 V.
The peak sensitivity occurs at a wavelength of 940 nm.
Yes, the device is a lead‑free component and complies with RoHS 2002/95/EC.
