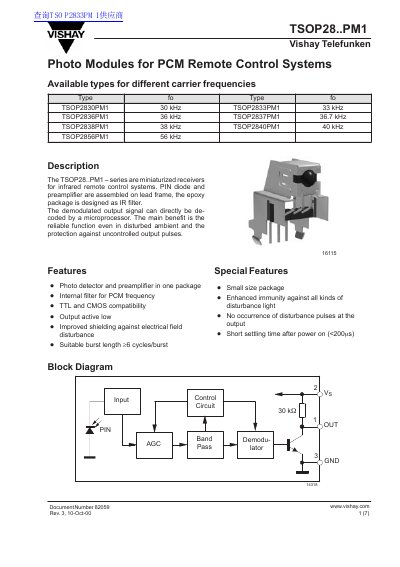

The TSOP28..PM1 is a miniaturized receiver for infrared remote control systems with an internal filter that provides reliable functionality.
The TSOP28..PM1 series are miniaturized infrared receivers designed for PCM remote‑control systems. The device integrates a PIN photodiode and a preamplifier in a single epoxy package that also acts as an IR filter, providing reliable operation even in disturbed ambient light.
The document lists absolute maximum ratings, basic electrical characteristics, suitable data formats, typical performance curves, and mechanical dimensions. It also includes a brief environmental policy statement from Vishay Semiconductor GmbH.
| Supply Voltage (Pin 2) VS | -0.3…6.0 V |
|---|---|
| Output Voltage (Pin 1) VO | -0.3…6.0 V |
| Supply Current (Pin 2) IS | 5 mA |
| Output Current (Pin 1) IO | 5 mA |
| Power Consumption (at Tamb = 85 °C) | 50 mW |
| Junction Temperature Tj | 100 °C |
| Operating Temperature Range | -25 °C … +85 °C |
| Package Dimensions | 15.8 × 3.9 mm |
The device operates with a supply voltage between –0.3 V and 6.0 V on Pin 2.
Its power consumption is specified as 50 mW at an ambient temperature of 85 °C.
The maximum output current on Pin 1 is 5 mA.
It can operate from –25 °C up to +85 °C.
