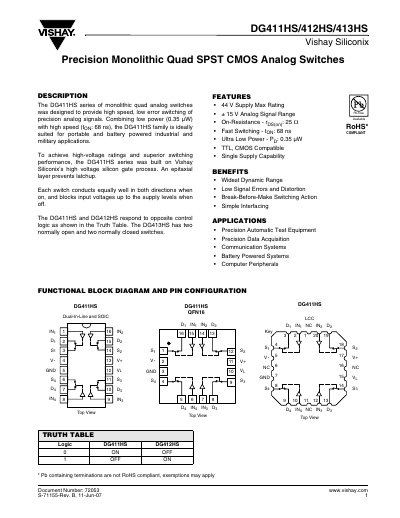

The DG411HS/412HS/413HS series is a precision quad SPST CMOS analog switch, providing high speed, low error switching of precision analog signals. It is ideal for portable and battery powered industrial and military applications.
The DG411HS/412HS/413HS series are monolithic quad SPST CMOS analog switches designed for high‑speed, low‑error precision signal routing. They are suitable for portable, battery‑powered industrial and military applications and feature a wide dynamic range with break‑before‑make operation.
Key specifications include a 44 V maximum supply rating, 25 Ω on‑resistance, 68 ns turn‑on time, and ultra‑low power consumption of 0.35 µW. The datasheet also lists pin configurations, absolute maximum ratings, typical characteristics, and test circuit examples to aid designers.
| Maximum Supply Voltage | 44 V |
|---|---|
| On‑Resistance (rDS(on)) | 25 Ω |
| Turn‑On Time (tON) | 68 ns |
| Power Dissipation (Typical) | 0.35 µW |
| Analog Signal Range | ±15 V |
The devices can operate with a supply voltage up to 44 V.
Each switch has an on‑resistance of 25 Ω.
The turn‑on time is 68 ns.
Typical power dissipation is 0.35 µW.
