This datasheet lists the parameters of the IHSM-5832 inductor, including inductance, inductance tolerance, maximum current, operating temperature, and package type.

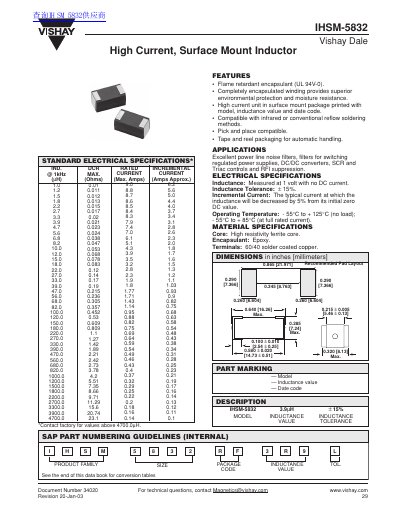

This datasheet describes the Vishay IHSM-5832 high‑current surface‑mount inductor, highlighting its flame‑retardant encapsulant, fully encapsulated winding for moisture resistance, and compatibility with reflow soldering and pick‑and‑place processes. It also lists packaging options such as tape and reel for automatic handling.
Key electrical specifications include a 3.9 µH inductance with ±15% tolerance, incremental current rating, and operating temperature ranges from –55 °C to +125 °C (no load) and –55 °C to +85 °C at full rated current. Material details cover a high‑resistivity ferrite core, epoxy encapsulant, and 60/40 solder‑coated copper terminals. The document also provides rated current values and typical application areas such as power‑line noise filtering and RFI suppression.
| Inductance | 3.9 µH |
|---|---|
| Inductance Tolerance | ±15% |
| Incremental Current | Typical current where inductance drops 5% |
| Operating Temperature | -55 °C to +125 °C (no load); -55 °C to +85 °C (full load) |
| Core Material | High resistivity ferrite |
| Encapsulant | Epoxy |
| Terminals | 60/40 solder coated copper |
| Rated Current (max) | Up to 9.0 A for 3.9 µH |
The IHSM-5832 has an inductance of 3.9 µH.
The inductance tolerance is ±15%.
The device operates from –55 °C to +125 °C with no load, and from –55 °C to +85 °C at full rated current.
The core is made of high‑resistivity ferrite.
