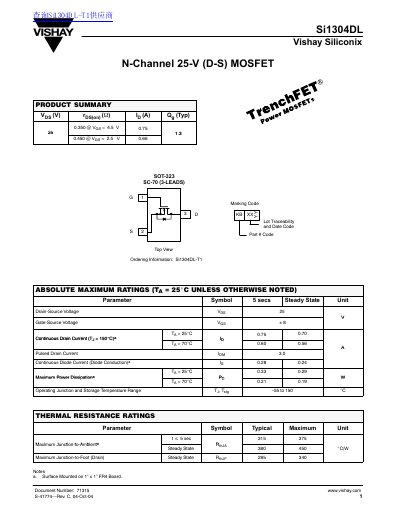

Si1304DL-T1 is a N-Channel 25-V (D-S) MOSFET from Vishay Siliconix. Its maximum drain-source voltage is 25 V, maximum drain current is 0.75 A, typical on-state drain-source resistance is 0.350 Ω, and typical gate capacitance is 1 nF.
The Si1304DL MOSFET data sheet provides the absolute maximum ratings, electrical specifications, and typical performance curves for the device. Key parameters include a 25 V drain‑source voltage, continuous drain current up to 0.75 A, and low on‑resistance values.
Typical characteristics such as on‑resistance versus gate voltage, drain current versus drain voltage, and thermal impedance are presented in graphical form. The document also lists ordering information and package details for the SC‑70 (3‑lead) package. This manual is written in Chinese.
| Drain‑Source Voltage (VDS) | 25 V |
|---|
The device is rated for a maximum drain‑source voltage of 25 V.
