This document describes the features and characteristics of the BAR63V-02V RF PIN diode, including low forward resistance, small reverse capacitance, and high isolation. The product is suitable for frequency tuning applications in wireless, mobile, and TV systems.

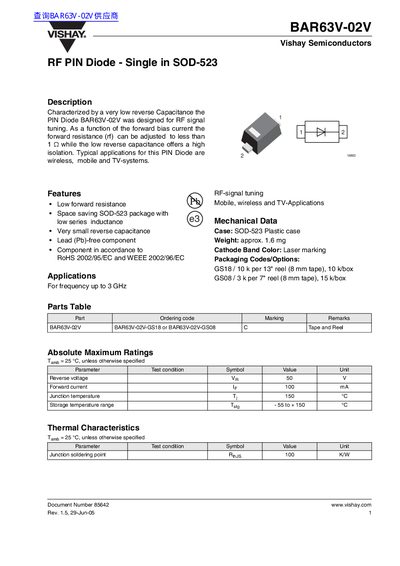

The BAR63V-02V is a single RF PIN diode in a space‑saving SOD‑523 package, designed for RF signal tuning with low forward resistance and very small reverse capacitance. Typical applications include wireless, mobile, and TV systems up to 3 GHz.
The datasheet lists key electrical parameters such as 50 V reverse voltage, 100 mA forward current, and a reverse capacitance of 0.28 pF at 1 MHz. Mechanical data include a plastic SOD‑523 case weighing about 1.6 mg, and packaging options for tape‑and‑reel reels.
