The CWR11 series is Vishay Sprague's TANTAMOUNT® military solid tantalum chip capacitors that are rated for operation from -55°C to +85°C and have a voltage rating of 4 WVDC to 50 WVDC. These capacitors have a capacitance range of 0.10µF to 100µF and are available with ±20%, ±10% and ±5% tolerances. The CWR11 series capacitors are available in four different case codes and offer multiple termination and surge current options.
The Vishay CWR11 series provides solid tantalum chip capacitors ranging from 0.10 µF to 100 µF with voltage ratings from 4 V to 50 V. Features include molded case options, high‑volume pick‑and‑place compatibility, and a solder‑plate termination.

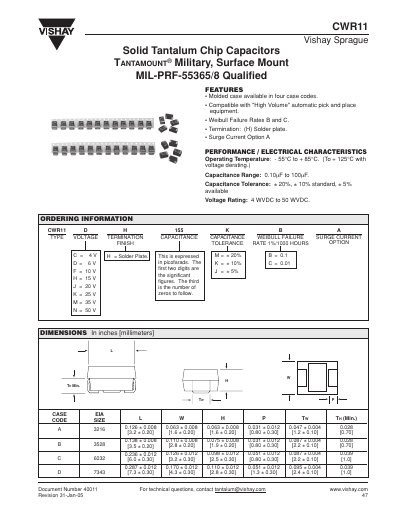

The document details electrical characteristics, standard ratings, test procedures (vibration, shock, moisture, thermal), soldering compatibility, recommended PCB pad geometries, and tape‑and‑reel packaging information for designers and manufacturers.
| Operating Temperature | -55 °C to +85 °C (to +125 °C with voltage derating) |
|---|---|
| Capacitance Range | 0.10 µF to 100 µF |
| Voltage Rating | 4 V to 50 V |
| Capacitance Tolerance | ±20 %, ±10 % standard, ±5 % optional |
| Termination | Solder plate (code H) |
The CWR11 capacitors operate from –55 °C to +85 °C, and can be used up to +125 °C with voltage derating.
The series offers voltage ratings of 4 V, 6 V, 10 V, 15 V, 20 V, 25 V, 35 V, and 50 V.
Capacitors can withstand exposure to +260 °C (+5 °C tolerance) for up to 10 seconds during soldering.
