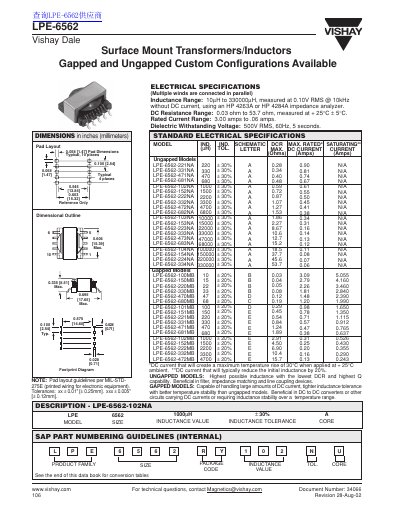

LPE-6562 is a surface mount transformer/inductor from Vishay Dale. It has the highest possible inductance, lowest DCR and highest Q capability. It is useful in filter, impedance matching and other applications.
The LPE-6562 series from Vishay Dale includes both gapped and ungapped surface‑mount inductors for a wide range of applications, offering high Q and stable inductance over temperature. Various part numbers (e.g., LPE-6562‑102NA, LPE-6562‑221MB) identify specific inductance values and configurations.
The datasheet lists electrical specifications such as inductance range, DC resistance, rated current, and dielectric withstanding voltage, as well as mechanical details like pad dimensions, tape and reel packaging, and compliance with industry standards (MIL‑STD‑275E, EIA‑481).
| Inductance Range | 10 µH to 330 000 µH |
|---|---|
| DC Resistance Range | 0.03 Ω to 53.7 Ω |
| Rated Current Range | 3.00 A to 0.06 A |
| Dielectric Withstanding Voltage | 500 V RMS, 60 Hz, 5 s |
| Inductance Tolerance | ± 30 % |
The LPE-6562 series covers inductance values from 10 µH up to 330 000 µH.
The tape width is 32 mm, component pitch 20 mm, with 300 units per 13‑inch reel.
They are rated for 500 V RMS at 60 Hz for 5 seconds.
Packaging follows the latest revision of EIA‑481 for taping of surface‑mount components.
