VLMW62.. is a high performance LED produced by Vishay Semiconductors. It adopts InGaN technology and has features such as low thermal resistance, high optical power, high luminous efficiency, and anti-ESD.

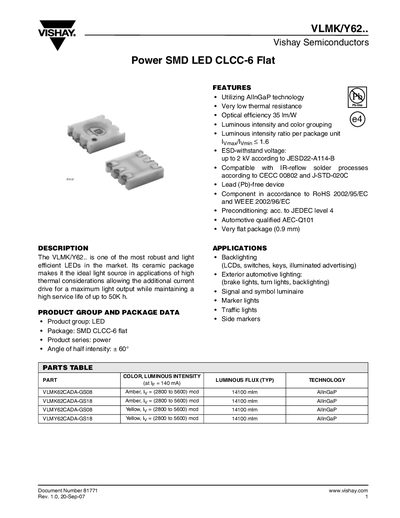

The VLMK/Y62.. series is a high‑efficiency power LED offered in a flat CLCC‑6 surface‑mount package. It features AllnGaP technology, low thermal resistance, and an optical efficiency of 35 lm/W, making it suitable for high‑thermal‑load applications such as automotive lighting and backlighting.
The document provides electrical and optical specifications, packaging dimensions, handling and storage guidelines, and compliance information (RoHS, AEC‑Q101, JEDEC level 4). It also includes recommended soldering profiles and bar‑code labeling details for production.
| Package type | SMD CLCC-6 flat |
|---|---|
| Angle of half intensity | +60° |
| Optical efficiency | 35 lm/W |
| Forward current (max) | 150 mA |
| Power dissipation (max) | 450 mW |
| Junction temperature (max) | +115 °C |
| Operating temperature range | -40 °C to +100 °C |
| Thermal resistance junction/pin | 60 K/W |
| Dominant wavelength (typical) | 583–594 nm (yellow) |
| Peak wavelength (typical) | 591 nm |
| Forward voltage (typical) | 1.90–3.0 V |
The recommended storage temperature for the sealed dry bags is 10 °C to 30 °C.
Shelf life in a sealed bag is 12 months at less than 40 °C and less than 90 % relative humidity.
Yes, the devices are RoHS compliant and lead‑free.
