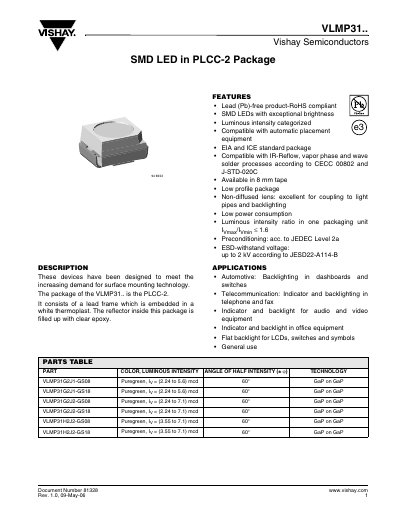

Vishay Semiconductors VLMP31.. SMD LED in PLCC-2 Package is a high brightness SMD LED produced by Vishay company. It meets the RoHS standard and is compatible with automatic placement equipment. It can be used in automotive, telecommunications, audio and video equipment, office equipment and other fields.
The VLMP31.. series are lead‑free, RoHS‑compliant surface‑mount LEDs supplied in a PLCC‑2 package. The datasheet lists optical and electrical characteristics, absolute maximum ratings, and typical performance curves for various brightness and color groups.
Packaging details, tape‑and‑reel handling, storage recommendations, and environmental compliance statements are also provided to aid manufacturers in automated assembly and reliable long‑term use.
| Package type | PLCC‑2 |
|---|---|
| Maximum forward voltage (20 mA) | 2.8 V |
| Maximum reverse voltage | 6 V DC |
| Power dissipation | 100 mW |
| Maximum junction temperature | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Typical luminous intensity (VLMP31G2J1, 10 mA) | 2.24 – 5.6 mcd |
| Storage humidity limit | ≤ 60 % RH |
The recommended storage humidity is 60 % relative humidity or lower.
The LEDs can tolerate up to 6 V DC reverse voltage.
Yes, they are lead‑free and RoHS compliant.
The series uses a PLCC‑2 surface‑mount package.
