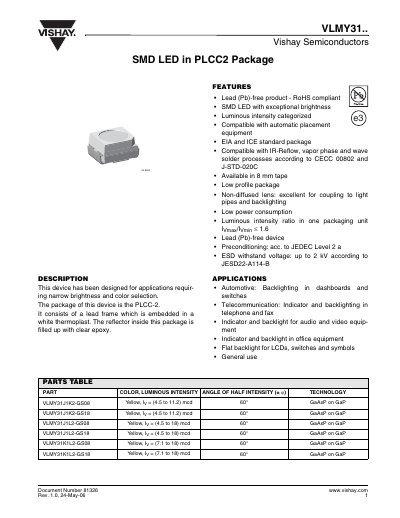

This document mainly introduces the features and characteristics of Vishay Semiconductors VLMY31 SMD LED, including the product using lead (Pb) harmless products - RoHS standard, with excellent brightness, compatible with automatic placement equipment, in line with EIA and ICE standard packaging, compatible with IR-Reflow, vapor phase and wave soldering processes, with low power consumption and other features.
The VLMY31 series are PLCC‑2 packaged surface‑mount LEDs offered by Vishay Semiconductors. They are RoHS‑compliant, lead‑free devices with high brightness and low power consumption, intended for automotive dashboards, telecommunications, audio‑video equipment, and office devices.
Key data include forward voltage of 2.1‑2.8 V at 20 mA, typical forward current of 30 mA, power dissipation of 100 mW, and an operating temperature range of –40 °C to +100 °C. The LEDs are supplied in 8 mm tape reels with moisture‑sensitive handling and specified ESD protection up to 2 kV.
| Package type | PLCC‑2 |
|---|---|
| Forward voltage (typical, 20 mA) | 2.1 V – 2.8 V |
| Power dissipation | 100 mW |
| Junction temperature max | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| ESD withstand voltage | up to 2 kV |
Store the sealed reels in a dry box at 10 °C to 30 °C with humidity not exceeding 60 % RH; moisture‑sensitive devices must be dried if the bag is opened.
The forward voltage is typically between 2.1 V and 2.8 V at 20 mA.
They are supplied in a PLCC‑2 package on 8 mm blister tape reels (GS08 or GS18).
