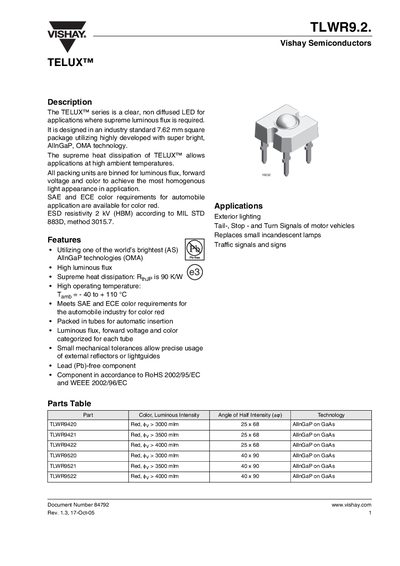

The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed with super bright, AllnGaP, OMA technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux, forward voltage and color to achieve the most homogenous light appearance in application. SAE and ECE color requirements for automobile application are available for color red. ESD resistivity 2 kV (HBM) according to MIL STD 883D, method 3015.7.
The TLWR9.2 series (TELUX™) is a clear, non‑diffused LED designed for high luminous flux applications. It is offered in a standard 7.62 mm square package and meets automotive SAE and ECE color requirements for red LEDs.
Key features include high luminous flux (up to 9700 mcd), supreme heat dissipation (thermal resistance ≈200 K/W), and a wide operating temperature range from –40 °C to +110 °C. The datasheet lists absolute maximum ratings, optical and electrical characteristics, and detailed mechanical dimensions for precise integration.
| Package size | 7.62 mm square |
|---|---|
| Operating temperature range | -40 °C to +110 °C |
| Thermal resistance (junction‑to‑ambient) | 200 K/W |
The TLWR9.2 LED can operate from –40 °C up to +110 °C.
