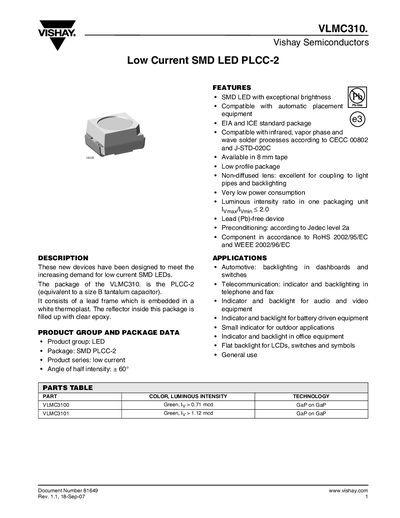

The document introduces the features and characteristics of Vishay Semiconductors VLMC310 Low Current SMD LED PLCC-2, including exceptional brightness, compatibility with automatic placement equipment, EIA and ICE standard package, compatibility with infrared, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C, available in 8 mm tape, low profile package, non-diffused lens suitable for coupling to light pipes and backlighting, very low power consumption, luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 2.0, lead-free device, and compliance with RoHS 2002/95/EC and WEEE 2002/96/EC.
The VLCM310 series are low‑current SMD LEDs in a PLCC‑2 package, designed for high brightness and low power consumption. The document provides detailed electrical and optical characteristics, absolute maximum ratings, and typical performance curves.
It also describes packaging dimensions, tape and reel handling, recommended soldering profiles, storage conditions, and compliance information such as RoHS and ozone‑depleting substances policy.
| Reverse voltage (Vr) | 6 V |
|---|---|
| DC Forward current (If) | 7 mA |
| Power dissipation (Pmax) | 20 mW |
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 to +100 °C |
| Forward voltage (typical, 2 mA) | 1.9 – 2.4 V |
| Luminous intensity (typical, 2 mA) | 0.71 – 1.12 mcd |
| Dominant wavelength | 562 – 575 nm |
| Angle of half intensity | +60° |
| Storage temperature (recommended) | 10 °C to 30 °C |
The device can tolerate a reverse voltage of up to 6 V.
Store the devices at 10 °C to 30 °C with humidity below 60 % RH.
Typical forward voltage is between 1.9 V and 2.4 V.
The LED is supplied in a PLCC‑2 SMD package, available on 8 mm tape and reels.
