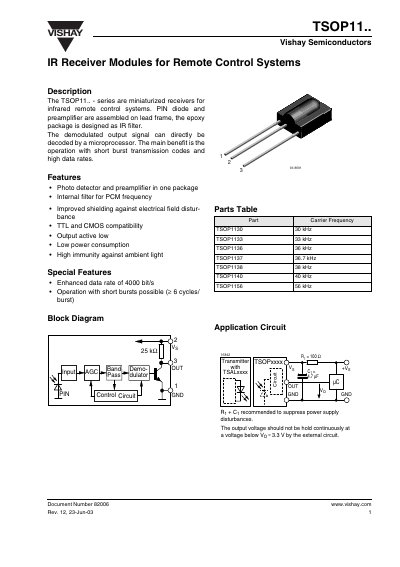

VISHAY TSOP11.. is a series of miniature infrared receivers from Vishay Semiconductors, which are integrated with photodetector and preamplifier.
The TSOP11 series are miniaturized infrared receiver modules designed for remote‑control systems. Each device integrates a photodiode, preamplifier and an internal filter, providing a low‑power, high‑immunity solution that outputs an active‑low TTL/CMOS signal.
The datasheet details electrical and optical characteristics, recommended data formats, package dimensions and environmental ratings, helping designers select the appropriate carrier frequency and configure the module for reliable operation in noisy environments.
| Supply Voltage (Pin 2) | 0.3 V to 6.0 V |
|---|---|
| Supply Current (Pin 2) | 5 mA |
| Output Current (Pin 3) | 5 mA |
| Power Consumption (Tamb ≤ 85 °C) | 50 mW |
| Maximum Burst Rate | Up to 2200 short bursts per second |
The module operates with a supply voltage between 0.3 V and 6.0 V on Pin 2.
Typical power consumption is 50 mW when the ambient temperature is 85 °C or lower.
