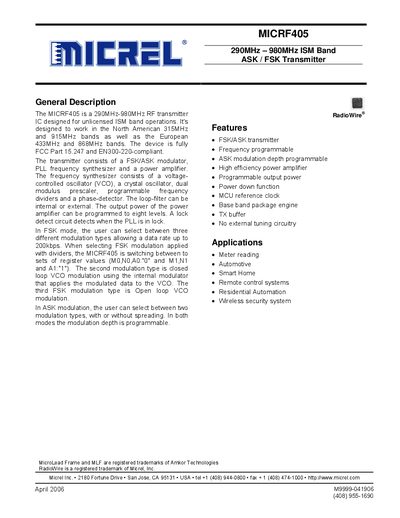

This datasheet introduces the features and characteristics of MICRF405 RF transmitter IC, including frequency range, working mode, modulation mode, etc.
The MICRF405 is a low‑power RF transmitter IC designed for unlicensed ISM‑band operation (315 MHz, 433 MHz, 868 MHz, 915 MHz). It integrates a PLL synthesizer, VCO, power amplifier and supports both FSK and ASK modulation with programmable depth and data rates up to 200 kbps.
Configuration is performed via a 3‑wire SPI interface (SEN, SIO, SCK) that allows register programming, power‑down control and packet handling. The device is supplied in a 24‑pin MLF package and meets FCC Part 15.247 and EN 300‑220 standards.
| Frequency range | 290 MHz – 980 MHz |
|---|---|
| Supply voltage | 2.2 V – 3.6 V |
| Programmable output power levels | 8 levels |
| Maximum data rate | 200 kbps |
| Programming interface | 3‑wire SPI (SEN, SIO, SCK) |
It operates in the North American 315 MHz and 915 MHz bands and the European 433 MHz and 868 MHz bands.
The power amplifier output can be programmed to eight different levels.
Programming is done via a 3‑wire SPI interface that includes SEN, SIO and SCK signals.
The device operates with a supply voltage between 2.2 V and 3.6 V.
