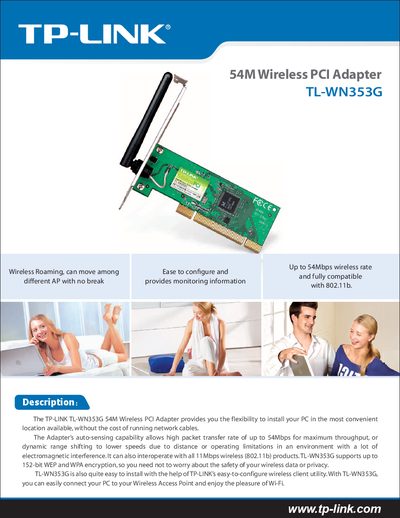

The TP-LINK TL-WN353G 54M Wireless PCI Adapter provides you the flexibility to install your PC in the most convenient location available, without the cost of running network cables. The Adapter’s auto-sensing capability allows high packet transfer rate of up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all 11Mbps wireless (802.11b) products. TL-WN353G supports up to 152-bit WEP and WPA encryption, so you need not to worry about the safety of your wireless data or privacy. TL-WN353G is also quite easy to install with the help of TP-LINK’s easy-to-configure wireless client utility. With TL-WN353G, you can easily connect your PC to your Wireless Access Point and enjoy the pleasure of Wi-Fi.
The TL-WN353G is a 54Mbps wireless PCI adapter that supports IEEE 802.11b and offers up to 152‑bit WEP, WPA/WPA2 encryption, and an omni‑directional fixed antenna. It includes an auto‑sensing capability for dynamic data‑rate fallback and can operate in both indoor (up to 100 m) and outdoor (up to 300 m) environments.
This manual covers hardware specifications, supported standards, installation steps, driver and utility setup, and operating system compatibility. It also lists environmental limits, certifications, and troubleshooting information for the adapter.
| Interface | 32-bit PCI |
|---|---|
| Wireless Signal Rates | 119:54/48/36/24/18/12/9/6 Mbps; 11b:11/5.5/3/2/1 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Receiver Sensitivity (54M) | -68 dBm @10% PER |
| Antenna Type | Omni Directional, Fixed |
| Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Range | Indoors up to 100 m, outdoors up to 300 m |
| Supported OS | Windows 7, Vsita, XP, 2000 |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Dimensions | 133 × 121 × 22 mm |
It supports IEEE 802.11b (and the 54 Mbps mode compatible with 802.11g devices).
The adapter works with Windows 7, Vsita, XP, and 2000.
The adapter can achieve up to 54 Mbps wireless rate.
