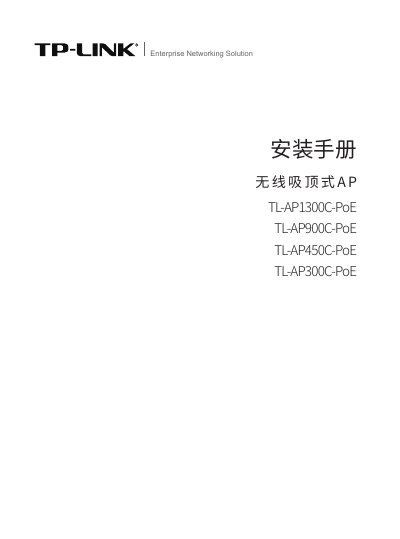

Installation guide for TP-Link TL-AP1300C-PoE, TL-AP900C-PoE, TL-AP450C-PoE and TL-AP300C-PoE wireless ceiling access points, covering hardware features…
The TP‑Link wireless ceiling AP series (TL‑AP1300C‑PoE, TL‑AP900C‑PoE, TL‑AP450C‑PoE, TL‑AP300C‑PoE) provides PoE‑powered, ceiling‑mountable Wi‑Fi connectivity for indoor environments such as offices, hotels and retail spaces. The devices support both FAT (stand‑alone) and FIT (controller‑managed) operation modes.
The manual explains the required tools and parts, step‑by‑step installation procedures, how to reset the unit, switch between FAT and FIT modes, and how to log into the web management interface. An appendix lists the technical specifications for each model. This manual is written in Chinese.
| Installation method | Ceiling / wall mount |
|---|---|
| Dimensions | 264 mm × 241 mm × 55 mm |
| Wireless standards | 802.11a/b/g/n/ac |
| Frequency bands | 2.4 GHz 2.4‑2.483 GHz, 5 GHz 5.150‑5.250 GHz, 5 GHz 5.725‑5.850 GHz |
| Maximum data rate | Up to 867 Mbps (5 GHz) + 450 Mbps (2.4 GHz) |
| Antenna | Internal antenna, 3 dBi gain |
| Ports | 1 × 10/100/1000 Mbps RJ45 (PoE) |
| Power supply | IEEE 802.3af/at PoE |
| Operating temperature | 0 °C ~ 40 °C |
| Recommended AP count per band | ≈25 APs on 2.4 GHz and ≈25 APs on 5 GHz |
Press and hold the RESET button while the AP is powered on; release after the system LED flashes four times and the unit will reboot with factory settings.
The device is powered via IEEE 802.3af/at standard PoE.
