The TL-WR702N 150Mbps Wireless N Nano Router is a compact and portable wireless router that supports AP, Router, Client, Bridge and Repeater operation modes. It also supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions. The router can be powered by an external power adapter or USB connection to a computer and provides wireless speed up to 150Mbps.
The TL‑WR702N is a compact 150 Mbps Nano router that creates a Wi‑Fi hotspot by connecting to an existing network via Ethernet. It can be powered through a micro‑USB port using an external power adapter or a USB connection to a computer, making it portable for on‑the‑road use.

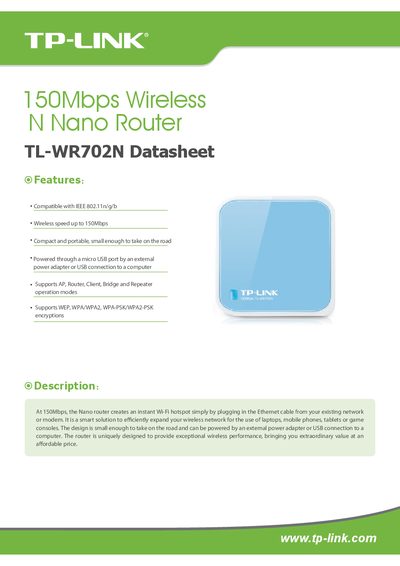

The datasheet lists the supported wireless standards (802.11n/g/b), frequencies (2.4‑2.4835 GHz), multiple operation modes (AP, Router, Client, Bridge, Repeater), security options (WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK), and additional features such as QoS, VPN pass‑through, and firewall filtering. Package contents include the router, power adapter, USB cable, Ethernet cable, quick installation guide, and a resource CD.
| Wireless Standards | IEEE 802.11n, 802.11g, 802.11b |
|---|---|
| Frequency | 2.4‑2.4835 GHz |
| WAN/LAN Port | 10/100 Mbps |
| Interface | Micro USB Port |
| Signal Rate | Up to 150 Mbps (dynamic) |
| EIRP | <20 dBm |
| Dimensions (W×D×H) | 57 mm × 57 mm × 18 mm |
It supports AP Mode, Router Mode, Client Mode, Repeater Mode, and Bridge Mode.
It can be powered via the micro USB port using an external power adapter or a USB connection to a computer.
The router supports 64/128/152‑bit WEP, WPA, WPA2, WPA‑PSK, and WPA2‑PSK.
The device measures 57 mm × 57 mm × 18 mm (W × D × H).
