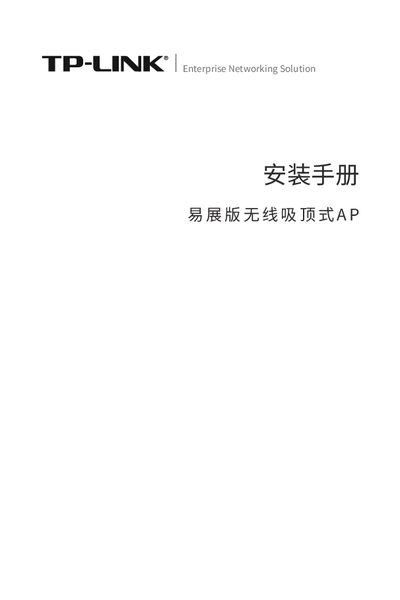

Installation guide for the TP-LINK TL-XAP3007GC-PoE/DC wireless ceiling access point, covering hardware features, setup steps, and network configuration.
This guide introduces the TL‑XAP3007GC‑PoE/DC wireless ceiling AP, a ceiling‑mountable access point that supports both IEEE 802.3af/at PoE and 12 V DC power. It explains the device’s hardware layout, indicator LEDs, ports, and the FAT/FIT mode switch for standalone or controller‑managed operation.
The manual walks through preparation, required tools, safety precautions, step‑by‑step installation, and network configuration for both FAT (standalone) and FIT (controller) modes. Appendices provide warranty information and toxic‑substance declarations. This manual is written in Chinese.
| Power supply | IEEE 802.3af/at PoE or 12 V DC 2.0 A adapter |
|---|---|
| WAN/LAN port | 1 RJ45 PoE/LAN port |
| Mode switch | FAT/FIT switch to select standalone or controller‑managed mode |
While the AP is powered, press and hold the RESET key until the system indicator flashes, then release; the device will restore factory defaults and reboot.
