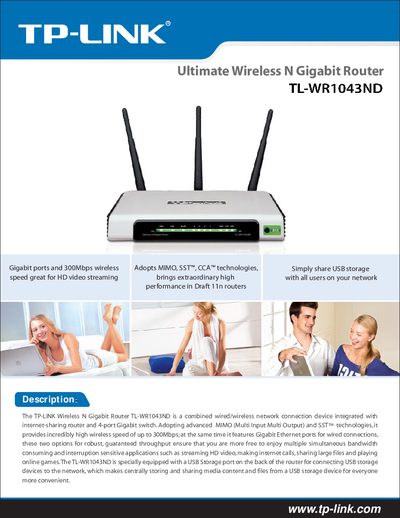

The TL-WR1043ND is a wireless N Gigabit router that combines a 4‑port Gigabit Ethernet switch with 300 Mbps 802.11n Wi‑Fi, USB storage sharing, and advanced MIMO, SST, and CCA technologies for high‑speed home or office networking.
This user manual offers step‑by‑step setup guidance, lists technical specifications such as wireless standards, antenna configuration, power supply, and environmental limits, and includes a quick‑setup guide and related product references.
| Wireless Standards | IEEE 802.11n (Draft 2.0), 802.11g, 802.11b |
|---|---|
| LAN Ports | 4 × 10/100/1000 Mbps |
| WAN Port | 1 × 10/100/1000 Mbps |
| USB Port | 1 × USB 2.0 |
| Wireless Speed (802.11n) | Up to 300 Mbps (dynamic) |
| Wireless Speed (802.11g) | Up to 54 Mbps (dynamic) |
| Wireless Speed (802.11b) | Up to 11 Mbps (dynamic) |
| Frequency Range | 2.4 – 2.4835 GHz |
| Antenna | 3 detachable 3 dBi omni‑directional antennas |
| Modulation Technologies | DBPSK, DOPSK, CCK, OFDM, 16‑QAM, 64‑OAM |
| Power Supply | 12 V DC, 1.5 A switching PSU |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Relative Humidity | 10 % ~ 90 % non‑condensing |
| Dimensions | 7.9 × 5.5 × 1.1 in. (200 × 140 × 28 mm) |
It provides four 10/100/1000 Mbps LAN ports.
Yes, the router includes a USB 2.0 port for connecting storage devices that can be shared on the network.
The TL‑WR1043ND supports up to 300 Mbps (dynamic) with 802.11n.
It uses a 12 V DC, 1.5 A switching power supply.
