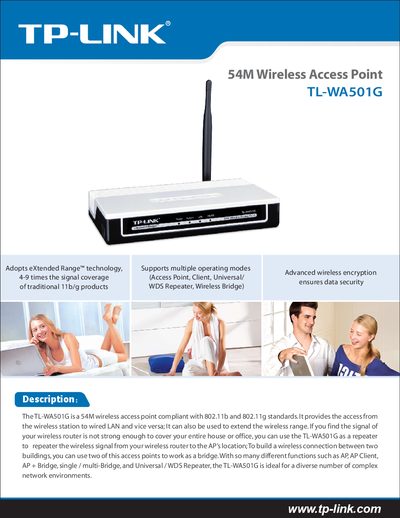

The TL-WA501G is a 54M wireless AP that supports the 802.11b/g standards. It provides the access from the wireless station to wired LAN and vice versa; It can also be used to extend the wireless range. With so many different functions such as AP, AP Client, AP + Bridge, single / multi-Bridge, and Universal / WDS Repeater, the TL-WA501G is ideal for a diverse number of complex network environments.
The TL-WA501G is a 54 Mbps wireless access point compliant with 802.11b/g standards. It can function as an access point, client, repeater, bridge, or in various mixed modes, making it suitable for complex network environments.
The manual includes quick setup steps, detailed specifications such as wireless rates, antenna type, power supply, temperature ranges, and dimensions, as well as information on security features, DHCP server, and firmware upgrades.
| Wireless Signal Rates (11g) | 54/48/36/24/18/12/9/6 Mbps (dynamic) |
|---|---|
| Wireless Signal Rates (11b) | 11/5.5/2/1 Mbps (dynamic) |
| Frequency Band | 2.4‑2.4835 GHz |
| Wireless Transmit Power | 17 dBm (max) |
| Antenna | 3 dBi detachable omni‑directional |
| Modulation (802.11b) | DOPSK, DBPSK, DSSS, CCK |
| Modulation (802.11g) | BPSK, QPSK, 16QAM, 64QAM, OFDM |
| Receiver Sensitivity (6 Mbps) | -88 dBm @ 10 % PER |
| Power Supply | 9 VAC / 0.8 A linear PSU |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 6.2 × 4.3 × 1.3 in. (158 × 110 × 32 mm) |
It supports Access Point, Client, Universal/WDS Repeater, Point‑to‑Point, Point‑to‑Multi‑point, and Bridge modes.
It offers 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK, and TKIP/AES encryption.
The device uses a 9 VAC / 0.8 A linear power supply, localized to the country of sale.
