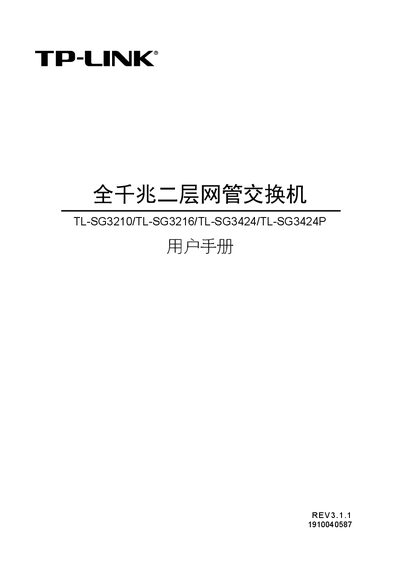

The TP‑Link TL‑SG3210/‑SG3216/‑SG3424/‑SG3424P Gigabit Layer‑2 Managed Switch User Manual provides configuration, management, VLAN, PoE, and security…
This manual is intended for technical personnel familiar with networking basics. It explains the features of the TL‑SG3210/‑SG3216/‑SG3424/‑SG3424P switches and guides users through initial setup and operation.
The document covers system management, layer‑2 switching, VLAN and protocol VLAN configuration, spanning‑tree protocols, multicast handling, QoS, PoE settings, access control lists, network security, SNMP, LLDP, cluster management, and system maintenance procedures. This manual is written in Chinese.
| Supported Ethernet Standards | IEEE 802.3 10Base‑T, IEEE 802.3u 100Base‑TX, IEEE 802.3ab 1000Base‑T |
|---|---|
| Backplane Bandwidth | TL‑SG3210: 20 Gbps, TL‑SG3216: 32 Gbps, TL‑SG3424/‑SG3424P: 48 Gbps |
| MAC Address Table Size | 8 K addresses |
| PoE Standard (TL‑SG3424P only) | IEEE 802.3af/at |
| Power Input | 100‑240 V~ 50/60 Hz, 0.6 A (TL‑SG3210/‑SG3216/‑SG3424) or 5.0 A (TL‑SG3424P) |
| Operating Temperature | 0 °C ~ 40 °C |
| Operating Humidity | 10 % ~ 90 % RH (non‑condensing) |
It supports the IEEE 802.3af/at PoE standard.
The switch can learn up to 8 K MAC addresses.
