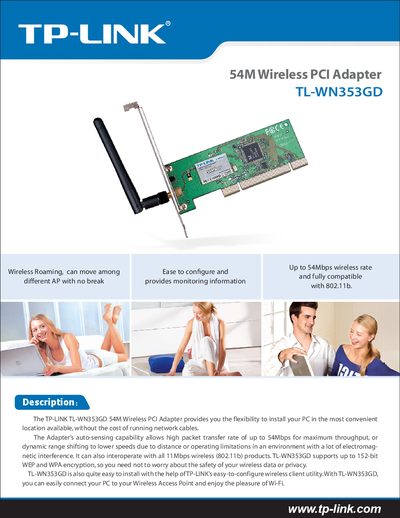

The product is TP-LINK TL-WN353GD 54M Wireless PCI Adapter. It supports wireless roaming function and 152-bit WEP and WPA encryption.
The TL-WN353GD 54M Wireless PCI Adapter lets you add Wi‑Fi connectivity to a desktop PC via a 32‑bit PCI slot. It supports up to 54 Mbps data rates, automatic fallback to lower speeds, and 802.11b/g wireless standards with WEP and WPA encryption.
The guide provides step‑by‑step installation instructions, details the hardware specifications such as transmit power, antenna type, operating temperature ranges, and lists compatible Windows operating systems. It also includes a quick‑setup utility and troubleshooting tips.
| Interface | 32-bit PCI |
|---|---|
| Wireless Signal Rates | 119:54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing); 11b:11/5.5/3/2/1 Mbps (Auto Rate Sensing) |
| Frequency Range | 2.4‑2.4835 GHz |
| Modulation Type | 1M DBPSK, 2M DOPSK, 5.5M CCK, 6‑54 Mbps OFDM |
| Receiver Sensitivity | -68 dBm @10 % PER (54 Mbps); -85 dBm @8 % PER (11 Mbps); -88 dBm @10 % PER (6 Mbps); -90 dBm @8 % PER (1 Mbps) |
| Antenna Type | Omni‑directional, detachable |
| Wireless Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Media Access Control | CSMA/CA with ACK |
| Range | Indoors up to 100 m, outdoors up to 300 m |
| Supported Operating Systems | Windows 2000, XP, Vista |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | -40 °C – 70 °C (-40 °F – 158 °F) |
| Relative Humidity | 10 % – 90 % (non‑condensing) |
| Storage Humidity | 5 % – 95 % (non‑condensing) |
| Dimensions | 133 × 121 × 22 mm (5.2 × 4.8 × 0.9 in) |
It supports IEEE 802.11b and IEEE 802.11g (referred to as 802.119 in the document).
The adapter works with Windows 2000, Windows XP, and Windows Vista.
Indoors it can reach up to 100 m and outdoors up to 300 m under standard conditions.
The device supports 64/128/152‑bit WEP, WPA/WPA2, and WPA‑PSK/WPA2‑PSK with TKIP/AES encryption.
