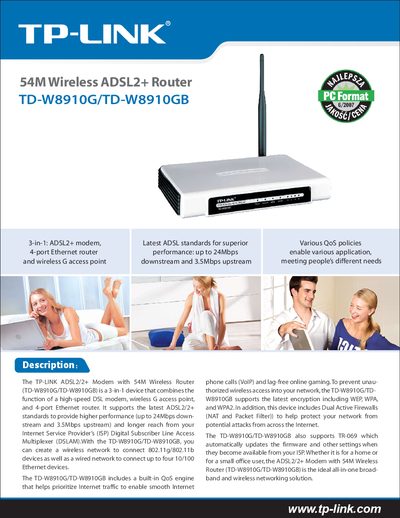

The TP-LINK ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G/TD-W8910GB) is a 3-in-1 device that combines the function of a high-speed DSL modem, wireless G access point, and 4-port Ethernet router. It supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps down- stream and 3.5Mbps upstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line Access Multiplexer (DSLAM).With the TD-W8910G/TD-W8910GB, you can create a wireless network to connect 802.11g/802.11b devices as well as a wired network to connect up to four 10/100 Ethernet devices. The TD-W8910G/TD-W8910GB includes a built-in QoS engine that helps prioritize Internet traffic to enable smooth Internet phone calls (VoIP) and lag-free online gaming. To prevent unau- thorized wireless access into your network, the TD-W8910G/TD- W8910GB supports the latest encryption including WEP, WPA, and WPA2. In addition, this device includes Dual Active Firewalls (NAT and Packet Filter)) to help protect your network from potential attacks from across the Internet. The TD-W8910G/TD-W8910GB also supports TR-069 which automatically updates the firmware and other settings when they become available from your ISP. Whether it is for a home or for a small office user, the ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G/TD-W8910GB) is the ideal all-in-one broad- band and wireless networking solution.
The TP‑Link TD‑W8910G/TD‑W8910GB is a 3‑in‑1 device that combines an ADSL2+ modem, a 4‑port Ethernet router and a wireless G access point. It supports up to 24 Mbps downstream and 3.5 Mbps upstream (Annex M enabled) and provides wireless connectivity with data rates up to 54 Mbps.
The guide details the router’s interfaces, QoS policies, firewall options, VPN pass‑through, and management features such as TR‑069 remote configuration. Technical specifications, dimensions, operating conditions, and included accessories are also listed.
| Downstream data rate | Up to 24 Mbps |
|---|---|
| Upstream data rate | Up to 3.5 Mbps (Annex M enabled) |
| Wireless data rates | 54/48/36/24/18/12/9/6 Mbps or 11/5.5/2/1 Mbps |
| Ethernet ports | 4 |
| RJ11 ports | 1 |
| Wireless operating range | Indoor up to 100 m, Outdoor up to 300 m |
| Dimensions | 200 × 140 × 28 mm |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Supported encryption | WPA/WPA2, WPA‑PSK/WPA2‑PSK, TKIP/AES, 64/128‑bit WEP |
The router supports a downstream speed of up to 24 Mbps.
It provides four Ethernet ports for wired connections.
The device supports WPA/WPA2, WPA‑PSK/WPA2‑PSK, TKIP/AES, and 64/128‑bit WEP encryption.
Yes, it includes CWMP (TR‑069) for centralized management and automatic firmware updates.
