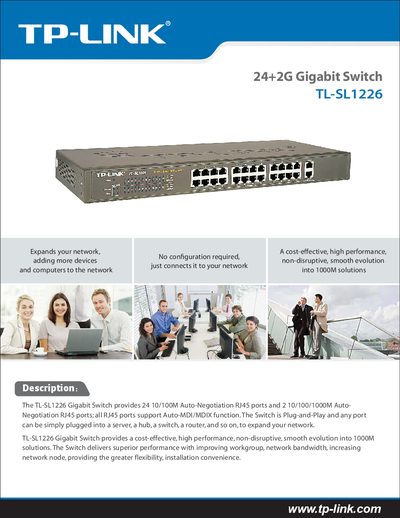

TL-SL1226 24+2G Gigabit Switch provides 24 10/100M Auto-Negotiation RJ45 ports and 2 10/100/1000M Auto- Negotiation RJ45 ports; all RJ45 ports support Auto-MDI/MDIX function. The Switch is Plug-and-Play and any port can be simply plugged into a server, a hub, a switch, a router, and so on, to expand your network. TL-SL1226 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience.
The TL-SL1226 Gigabit Switch expands your network with 24 10/100Mbps ports and 2 10/100/1000Mbps ports. It is a cost‑effective, high‑performance device that requires no configuration – simply plug it into any network device and it will start working.
The guide lists detailed specifications such as switching capacity, MAC address table size, power requirements, operating temperature range, and physical dimensions, helping users understand the capabilities and installation requirements of the switch.
| 10/100Mbps RJ45 ports | 24 |
|---|---|
| 10/100/1000Mbps RJ45 ports | 2 |
| Switching Capacity | 8.8 Gbps |
| Maximum Gigabit Ethernet Rate | 2000 Mbps (Full Duplex) |
| Power Supply | 100‑240 VAC, 50/60 Hz (internal universal) |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (W×D×H) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
No configuration is required; the switch is plug‑and‑play and works as soon as it is connected.
The switch provides 24 auto‑negotiating 10/100 Mbps RJ45 ports and 2 auto‑negotiating 10/100/1000 Mbps RJ45 ports, all with Auto‑MDI/MDIX.
It uses an internal universal power supply that accepts 100‑240 VAC at 50/60 Hz.
