The TL-WR641G 108M Wireless Router adopts Super G™ technology and supports data transmission rates up to 108Mbps. It is compatible with all IEEE 802.11g and IEEE 802.11b products, and supports 108/54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps data rates. It also adopts 2x to 3x Extended Range™ and 108M Super G™ technologies, so that the transmission distance is 2-3 times that of traditional 11g/b solutions and the transmission range is extended to 4-9 times.

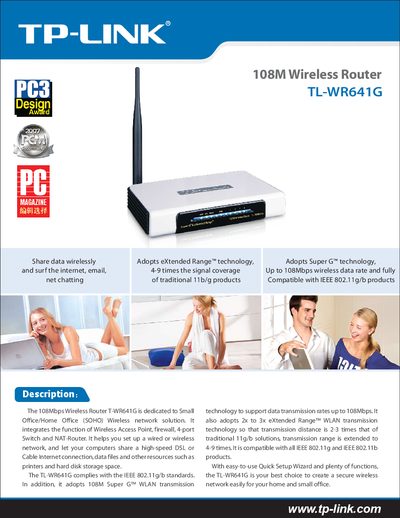

This guide introduces the TL‑WR641G 108Mbps wireless router, a SOHO solution that combines a wireless access point, firewall, 4‑port switch and NAT router. It describes how to set up wired or wireless networks, share Internet connections, and manage resources such as printers and storage.
The document also lists technical specifications, including wireless standards, antenna type, power supply, dimensions, and security features, and provides information on web‑based management, firmware upgrades, and supported connection modes.
| Maximum wireless data rate | 108 Mbps |
|---|---|
| Frequency range | 2.4 – 2.4835 GHz |
| Antenna | 3 dBi fixed omni‑directional |
| RJ45 port | 10/100 M auto‑sensing (Auto MDI/MDIX) |
| Wireless transmit power | 17 dBm (max) |
| Operating temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage temperature | -40 °C – 70 °C (-40 °F – 158 °F) |
| Dimensions | 174 mm × 111 mm × 30 mm |
| Power supply | 9 VAC / 0.8 A linear PSU |
It has a 10/100 M auto‑sensing RJ45 port with Auto MDI/MDIX capability.
The maximum wireless transmit power is 17 dBm.
The router measures 174 mm × 111 mm × 30 mm.
