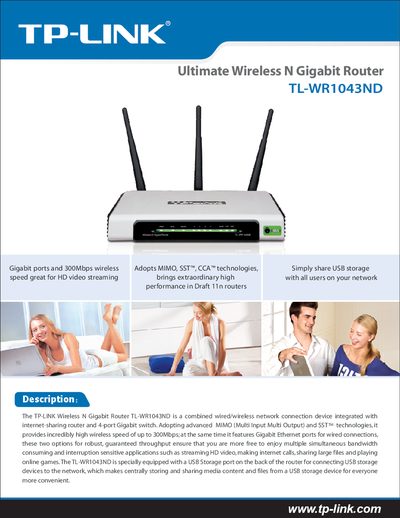

TL-WR1043ND is a wireless gateway product that integrates internet-sharing router and 4-port Gigabit switch, supports MIMO and SST technology, provides up to 300Mbps wireless transmission rate, and also supports Gigabit Ethernet ports, which brings high throughput, high-speed and stable network connection for users
The TL-WR1043ND is a combined wired/wireless network device that includes an internet‑sharing router and a 4‑port Gigabit switch. It uses MIMO, SST™ and CCA™ technologies to deliver wireless speeds up to 300 Mbps and supports IEEE 802.11n, 802.11g and 802.11b standards.
The router offers four Gigabit LAN ports, one Gigabit WAN port, and a USB 2.0 port for connecting storage devices, allowing network‑wide sharing of media and files. It includes built‑in firewall, VPN pass‑through, UPnP, DDNS, and QSS quick‑setup features for easy configuration.
| Wireless Standards | IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b |
|---|---|
| LAN Ports | 4 Gigabit LAN ports, 1 Gigabit WAN port |
| USB Port | 1 USB 2.0 port |
| Maximum Wireless Speed (11n) | Up to 300 Mbps (dynamic) |
| Frequency Range | 2.4‑2.4835 GHz |
| Antenna | 3 dBi detachable omni‑directional antennas (x3) |
| Power Supply | 12 VDC / 1.5 A switching PSU |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | 7.9 × 5.5 × 1.1 in. (200 × 140 × 28 mm) |
It provides four Gigabit LAN ports and one Gigabit WAN port.
The router can achieve up to 300 Mbps (dynamic) in 802.11n mode.
Yes, it includes a USB 2.0 port that lets you connect a storage device for network‑wide sharing.
