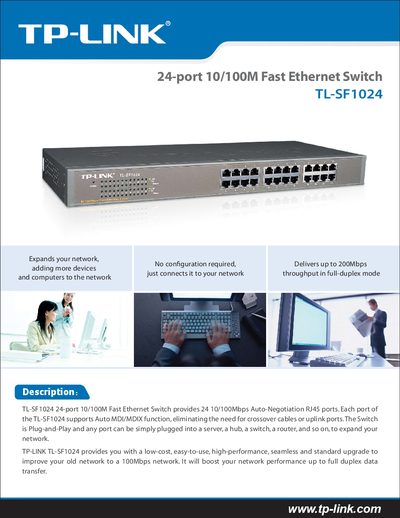

TP-LINK TL-SF1024 24-port 10/100M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. Each port of the TL-SF1024 supports Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The Switch is Plug-and-Play and any port can be simply plugged into a server, a hub, a switch, a router, and so on, to expand your network. TP-LINK TL-SF1024 provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer.
The TL‑SF1024 is a 24‑port Fast Ethernet switch that provides plug‑and‑play connectivity with no configuration required. Each RJ45 port supports Auto‑Negotiation and Auto MDI/MDIX, allowing direct connection to servers, routers, hubs or other switches.
Key specifications include a switching capacity of 8.8 Gbps, a MAC address table of 8 K entries, full‑duplex operation up to 200 Mbps, and an internal universal power supply that accepts 100‑240 V AC. The device complies with IEEE 802.3 and 802.3u standards and operates in a temperature range of 0 °C to 40 °C.
| Ports | 24 10/100Mbps Auto‑Negotiation RJ45 |
|---|---|
| Switching Capacity | 8.8 Gbps |
| MAC Address Table | 8K entries |
| Ethernet Speed (Half‑Duplex) | 10 Mbps |
| Fast Ethernet Speed (Half‑Duplex) | 100 Mbps |
| Power Supply | 100‑240 V~ 50‑60 Hz (internal universal) |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Dimensions (L×W×H) | 17.3 × 7.1 × 1.73 in. (440 × 180 × 44 mm) |
No configuration is required; the switch is plug‑and‑play and works as soon as it is connected.
Yes, every port supports Auto MDI/MDIX, eliminating the need for crossover cables.
The internal universal power supply accepts 100‑240 V AC at 50‑60 Hz.
